PRESSURE

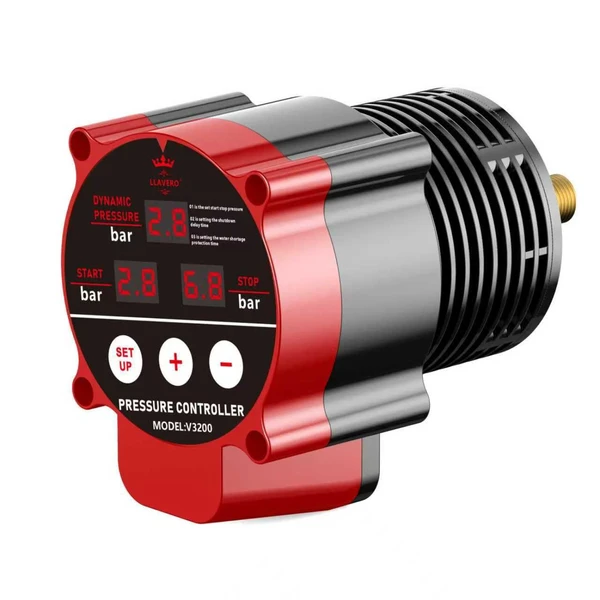

Smart Pressure Controller
V3200
Smart pressure controller for your water system. A good match with our other products to ensure your water supply system.
- Start pressure value adjustment: (Dynamic pressure displays 01) Adjustment range is between 0.1bar and 9.4bar. Press the setting button once → when the real-time dynamic pressure digital tube shows 01 → the start pressure value digital tube begins to flash → press the + or - button to adjust the value. The factory default setting is 1.5bar, displayed as (1.5).
- Stop pressure value adjustment: (Dynamic pressure displays 01) Adjustment range is between 0.5bar and 9.9bar. Press the setting button twice → when the real-time dynamic pressure digital tube shows 01 → the stop pressure value digital tube begins to flash → press the + or - button to adjust the value. The factory default setting is 2.5bar, displayed as (2.5).
- Shutdown delay time adjustment: (Dynamic pressure displays 02) Adjustment range: 0 seconds to 60 seconds. Press the setting button three times → when the real-time dynamic pressure digital tube shows 02 → the start pressure value and stop pressure value digital tubes flash simultaneously → press the + or - button to adjust the value. The factory default setting is 0 seconds, displayed as (00 00).
- Underpressure protection time adjustment: (Dynamic pressure displays 03) Adjustment range is from 0 seconds to 5 seconds up to 600 seconds; setting to 0 disables underpressure protection. Press the setting button four times → when the real-time dynamic pressure digital tube shows 03 → the start pressure value and stop pressure value digital tubes flash simultaneously → press the + or - button to adjust the value. The factory default setting is 300 seconds, displayed as (03 00).
- Underpressure protection pressure value adjustment: (Dynamic pressure displays 05) Adjustment range is between 0 and 5.0bar. Press the setting button five times → when the real-time dynamic pressure digital tube shows 05 → the start pressure value and stop pressure value digital tubes flash simultaneously → press the + or - button to adjust the value. The factory default setting is 0bar, displayed as (00 00). For example: to set the protection value to 1.0bar, press the + button to adjust to (00 10). Friendly reminder: When the pressure inside the pipe is below the set protection value, the system will enter the underpressure protection countdown shutdown state by default. Please adjust carefully. (If underpressure protection is disabled, this function is invalid).
- Protection interval start detection time setting: (Dynamic pressure displays 06) Adjustment range is between 0 minutes and 6000 minutes; setting to 0 minutes disables this function. Press the setting button six times → when the real-time dynamic pressure digital tube shows 06 → the start pressure value and stop pressure value digital tubes flash simultaneously → press the + or - button to adjust the value. The factory default setting is 0 minutes, i.e., (00 00) disabled. For example: to set to 60 minutes, press the + button to adjust to (00 60). (Friendly reminder: Please set the start detection time reasonably, otherwise it may cause excessive start times, etc.). (If underpressure protection is disabled, this function is invalid).
Customer Reviews
C
Chandra P.
India
Perfect water pressure in the shower now! No more annoying fluctuations when someone turns on the kitchen tap. It's been flawless for 8 months. Highly recommended!
M
Maria G.
Canada
Pump burned out twice before getting this controller. Been running 14 months with zero issues. The overload protection actually works. Should have bought this years ago!
Y
Yahya W.
Indonesia
Installation was plug-and-play. Love that it automatically adjusts based on demand. No more manual switching when watering the garden. Water pressure stays consistent throughout the house.
Product Inquiry
Interested in Smart Pressure Controller? Please contact us for detailed product information and quotes.
