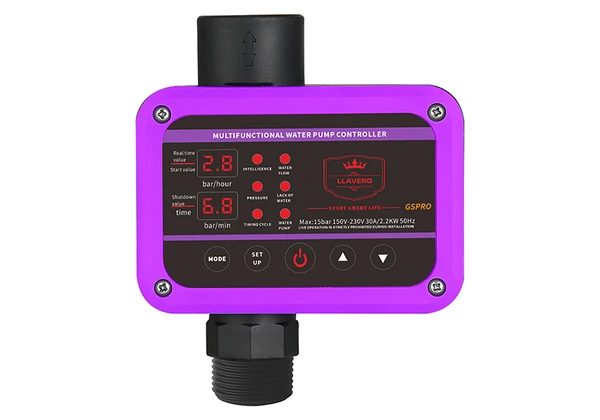

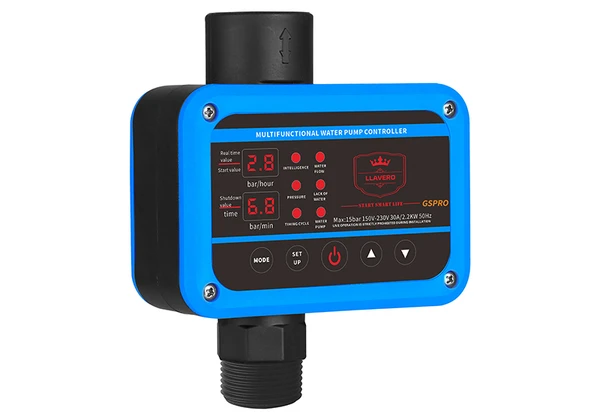

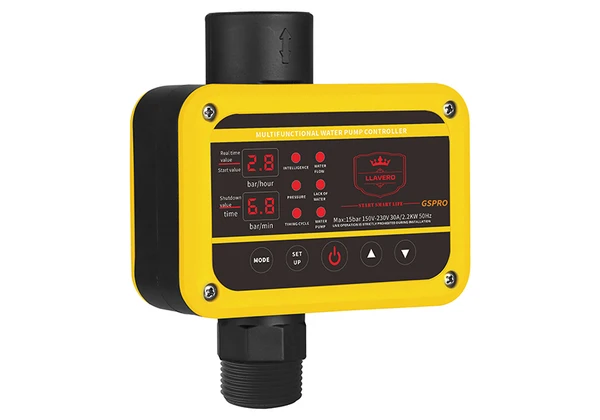

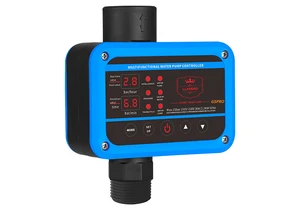

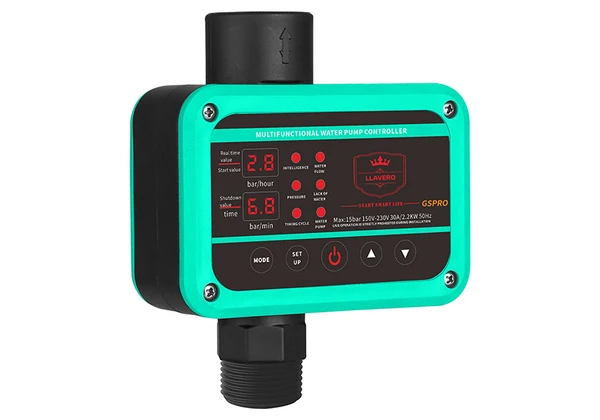

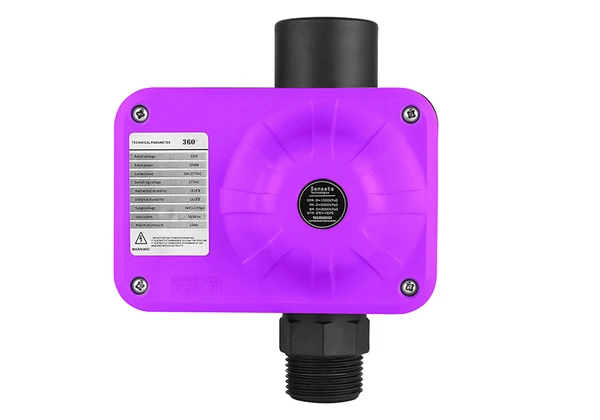

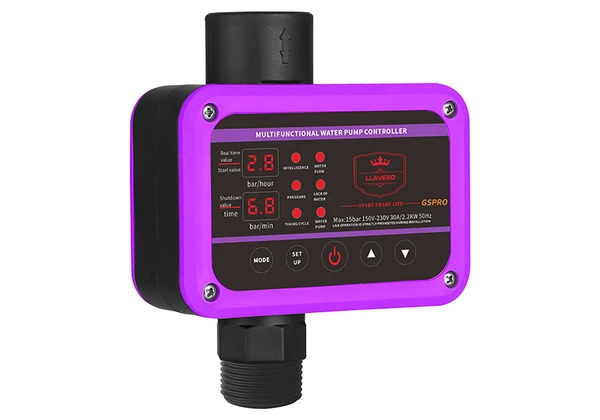

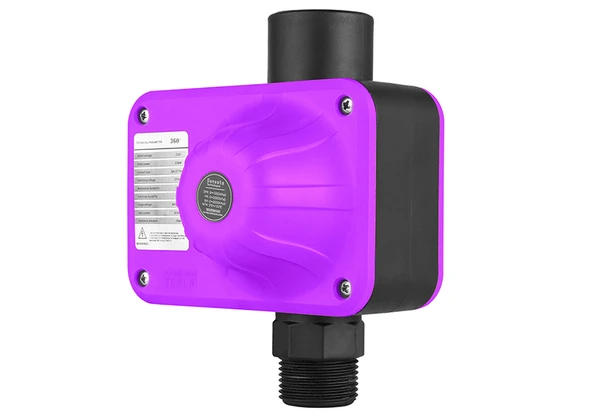

Intelligent Pump Controller
GSPRO
Electronic pressure switch for water system. It has replaced the traditional water pump control system, which consists of pressure switch, pressure tank, check valve and so on.

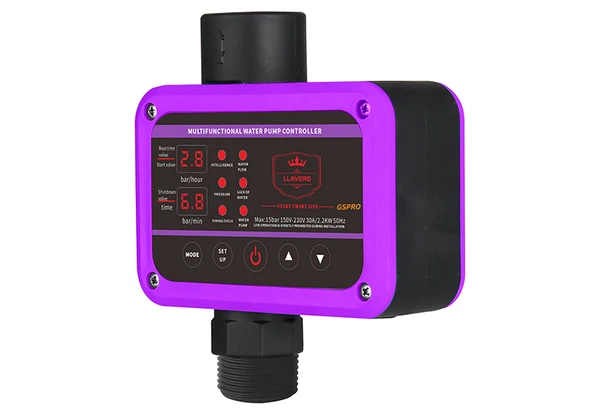

- Split screen display of high-definition dual nixie tube, and the start and stop pressure value and real-time pressure value in the tube are clear at a glance.
- Full LED status display headlights, panoramic view of any status.
- Intelligent mode; Flow switch + pressure sensor dual control start and stop. Application range: 0-10kg. The vertical height range is 0-100m, and there is no specific starting pressure value. After turning off the faucet, the shutdown value (the maximum lift value of the water pump) is automatically generated, and the startup value is 70% of the shutdown pressure.
- Pressure mode; Single sensor control, start value and stop value can be set arbitrarily. When the input start value is higher than the stop value, the system will automatically correct the pressure difference between the start value and the stop value to 0.5bar. (optional downtime without delay).
- Water tower mode; Flow switch + pressure sensor dual control shutdown. After turning off the faucet, the shutdown value (maximum head value of water pump) is automatically generated, and the starting time range can be set to 99 hours and 59 minutes.
- Water shortage protection; When there is no water in the water inlet and the pressure in the pipe is less than 0.3bar, it will enter the water shortage shutdown protection state after 8 seconds (optional 5-minute water shortage protection).
- Jam prevention function; Power on for 24 hours without use, rotate for 1 time to prevent the motor impeller from rusting and jamming.
- Installation angle; Unlimited, can be installed at any angle.
- There is a water tower / pool on the top of the building. Please use the regular / water tower circulating water replenishment mode. Not only does the cable need to be equipped with a floating ball switch and a water level switch, but it is ugly and unsafe. Just install a floating ball valve at the water outlet.
Related Products
Explore other products in the same category, find the best solution for your needs
AUTO
FEATURED

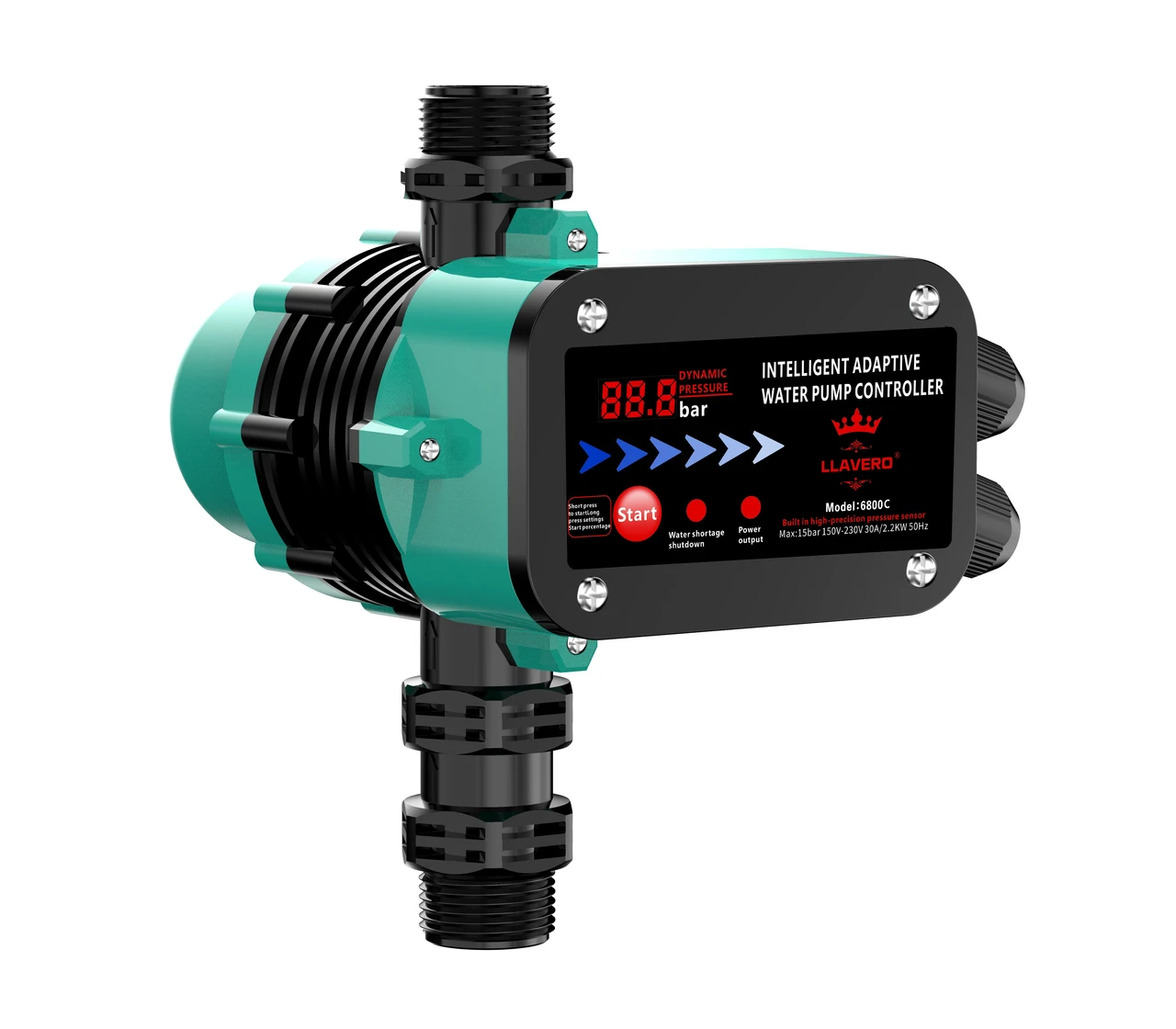

The 6800C model is our latest household water pump controller. It comes with real time pressure moni...
